Seed Treater Machine PNSh-5-01 (P) New Model

Seed Treater Machine

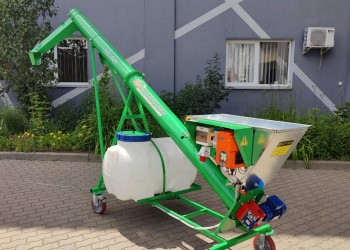

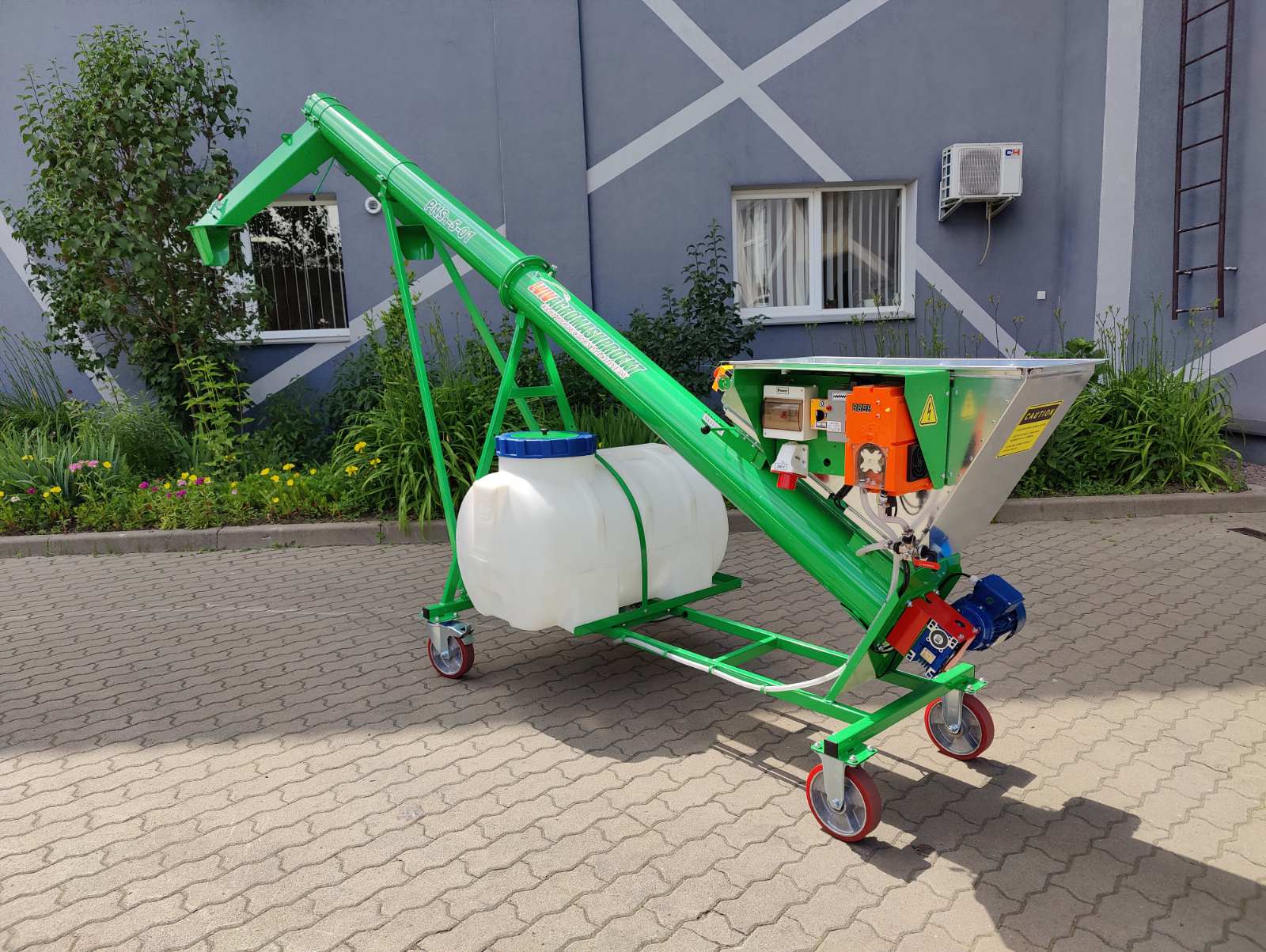

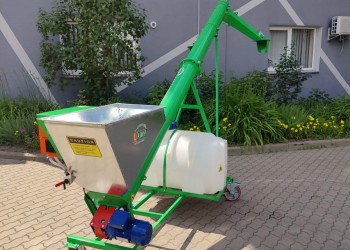

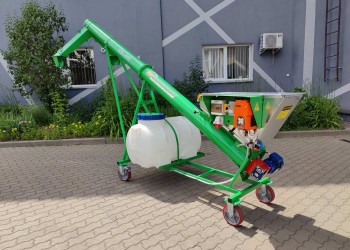

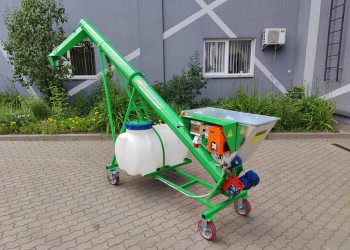

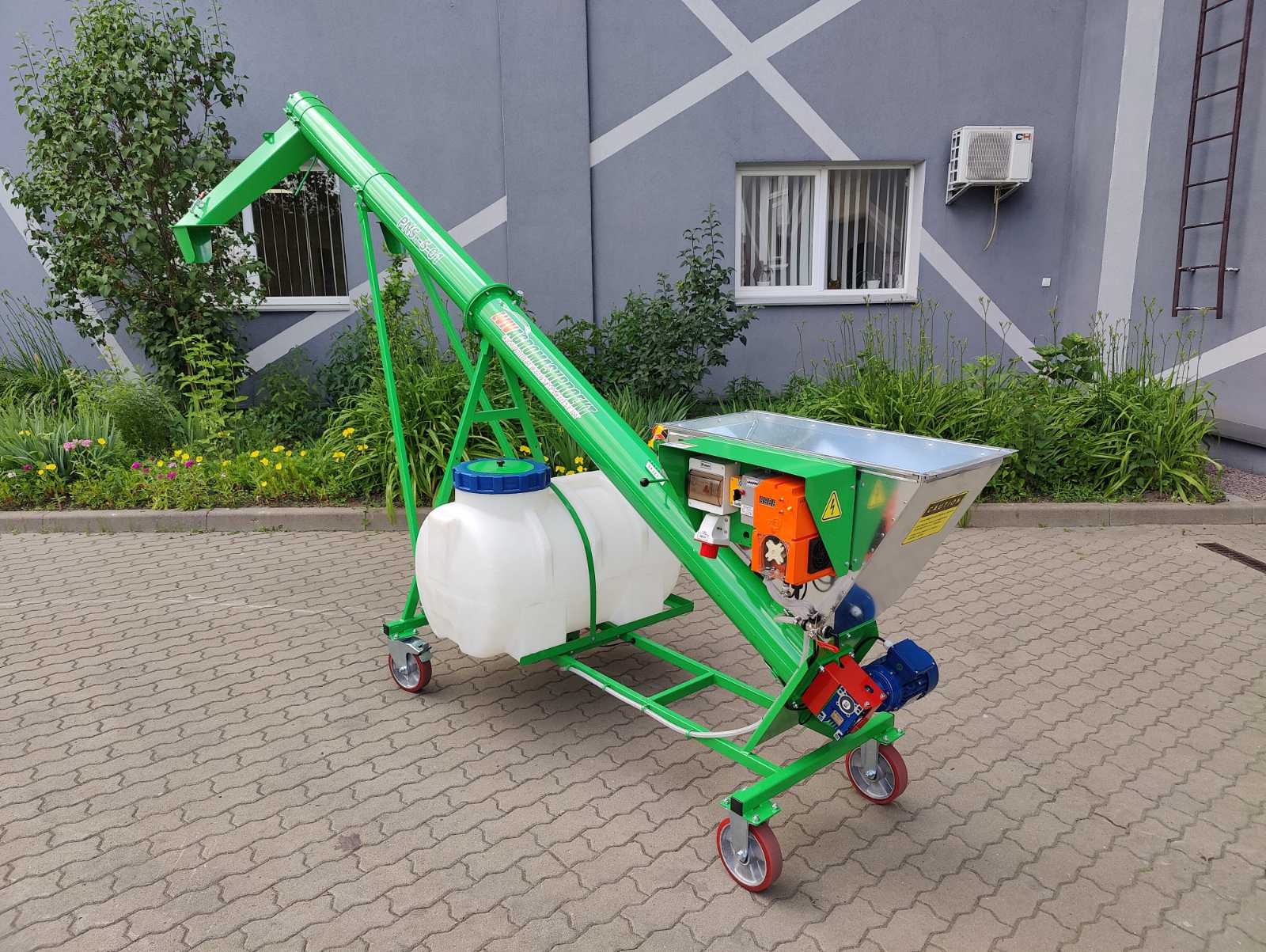

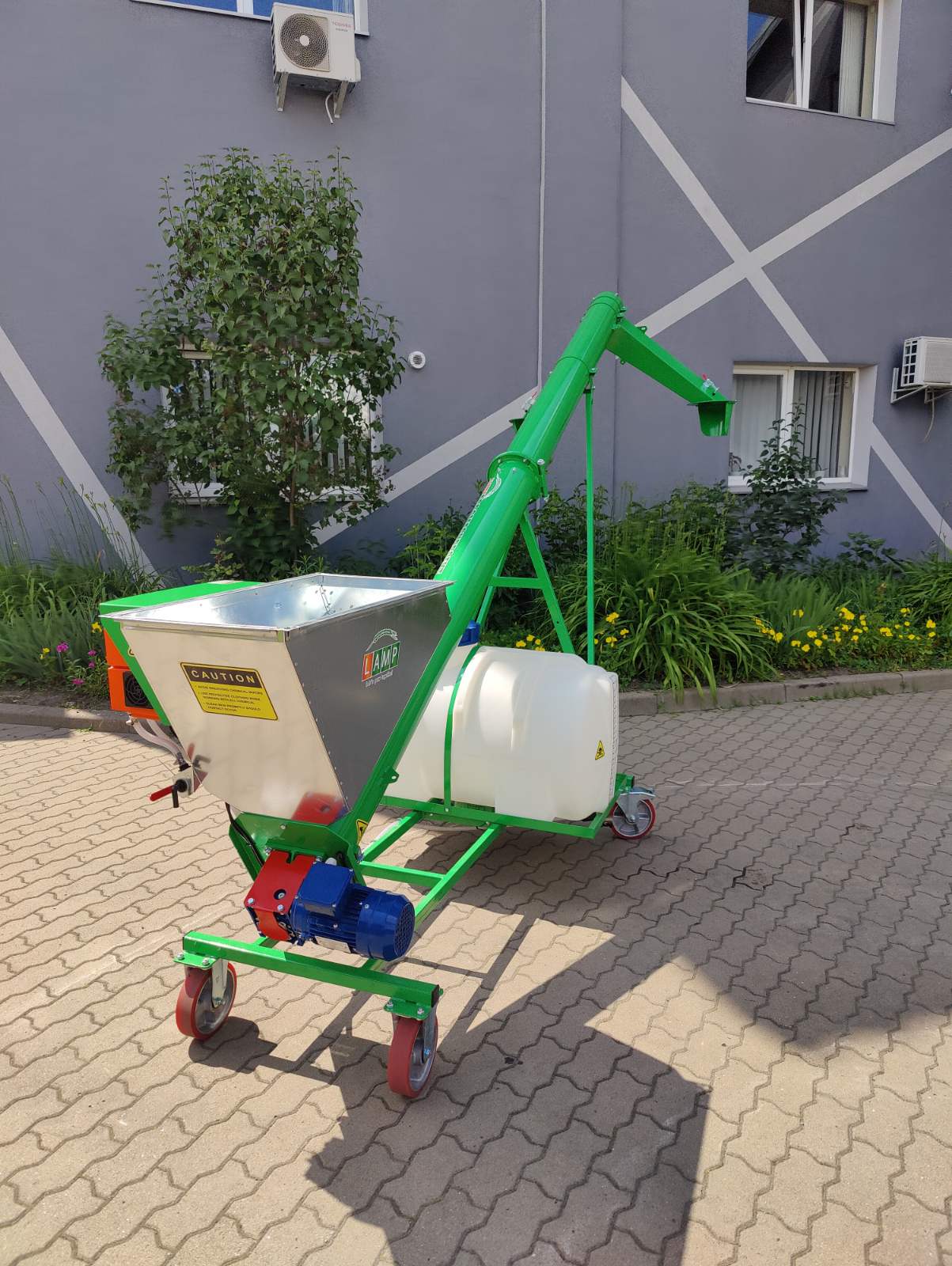

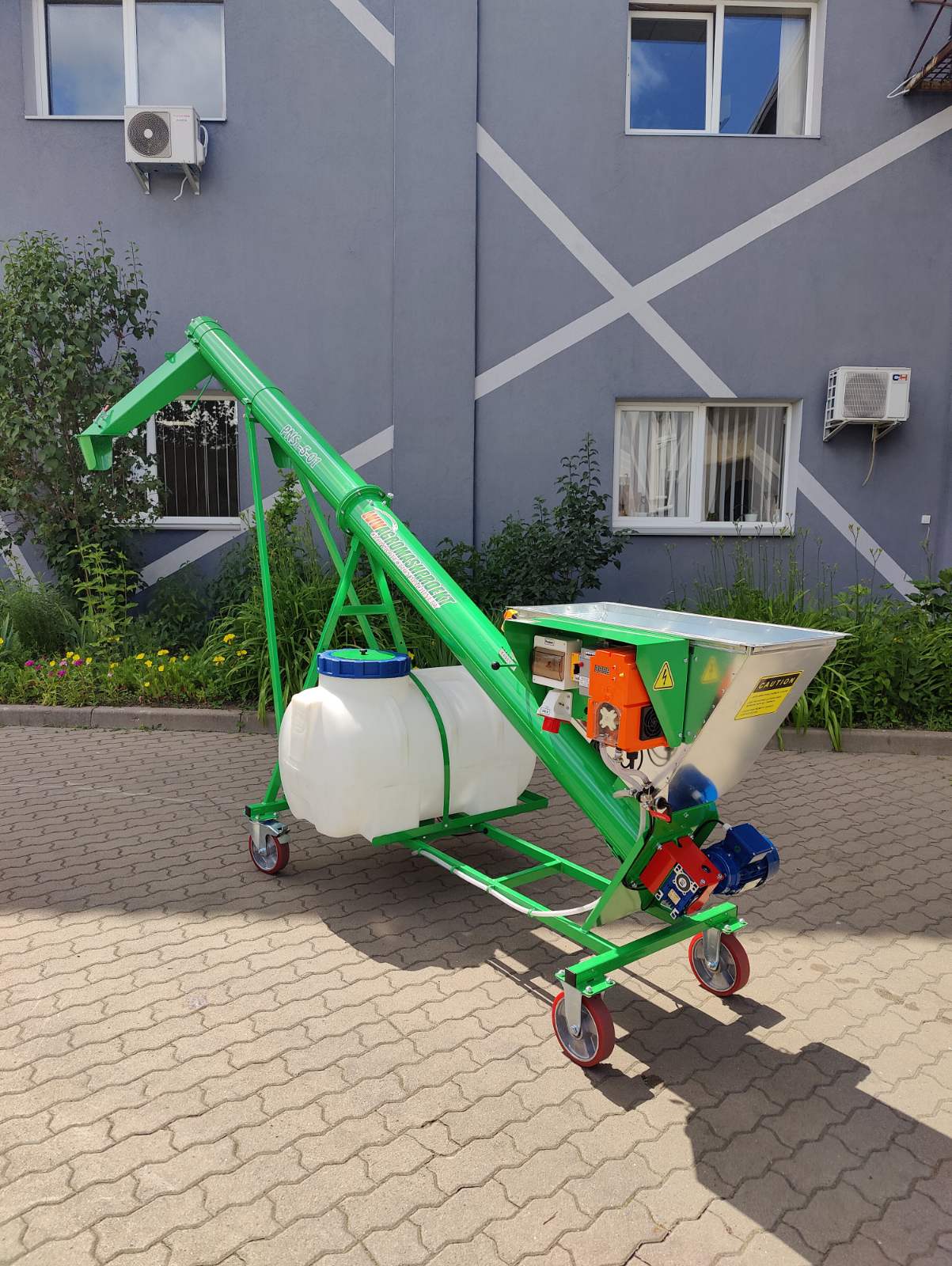

Seed Treater Machine PNSh-5-01 (P) is an updated version of the PNSh-3-01 (P) screw-type seed treater machine, adapted for unloading treated seeds into "big-bag" type bags up to 1 ton. The productivity of the seed treater has been increased to 5 t/h.

This machine is specially designed for small farms. Its tasks include precise and high-quality treatment of leguminous crops.

Characteristics:

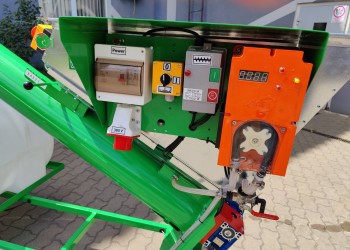

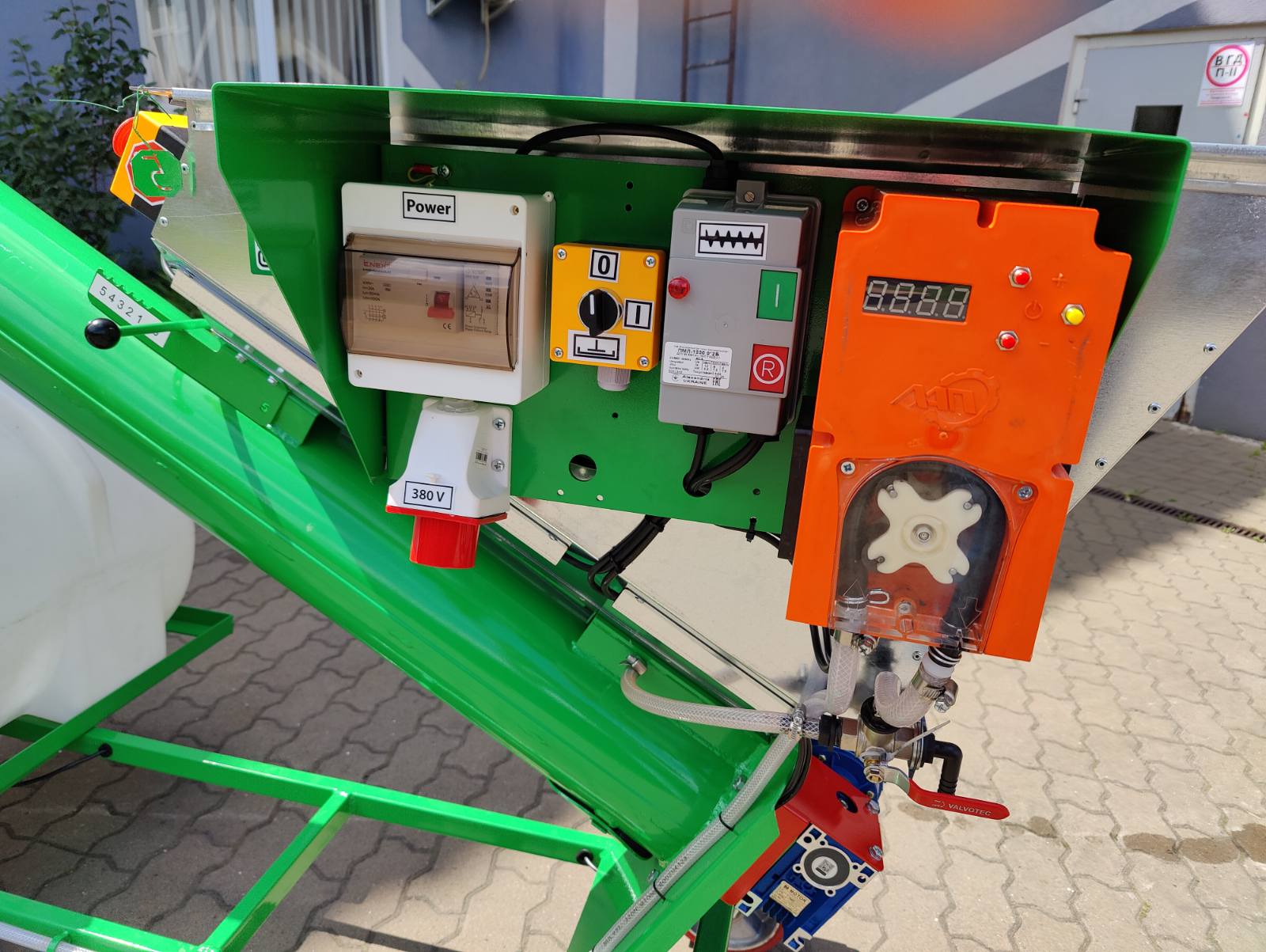

✔Programmable peristaltic pump-dispenser of own production. This ensures even and high-quality seed coating, allowing for the use of both liquid and highly viscous solutions.

✔Paddle auger with polyurethane linings, preventing damage to crops such as corn, soybeans, sunflower, rapeseed, peas, and others.

✔Mobile machine, ensuring convenience and mobility in the farm.

Advantages of the Seed Treater Machine:

✔Independence – You fully control the treatment process.

✔Time-saving – No need to wait for external service.

The PNSh-5-01 (P) is a combination of reliability, efficiency, and freedom in farming!

Parameter name and size	unit of measurement
Model	-	PNSh-5-01
Type	-	mobile
Productivity per 1 hour of main time (on wheat seeds)	t/h	1,0 to 5,0
Dry weight (structural), not more than	kg	200
Capacity of the working liquid tank, not more than	dm³	250
Delivery of working liquid by the dispenser	dm³/min	0,1 – 3,3
Power supply - from the AC power grid, voltage	V	380
Power consumption	kW	1,3
Seed loading height into the hopper, not more than	mm	1230

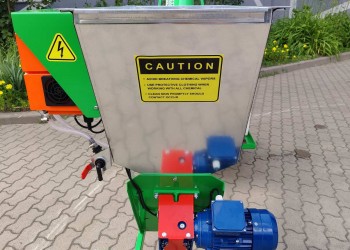

Seed hopper volume, not less than	dm³	100
Height of use, not less - with the sector - without a sector	mm	1720 1900
Overall dimensions in working/transport position, not more than length width height	mm	4140/2350 1360/1360 2540/1600
